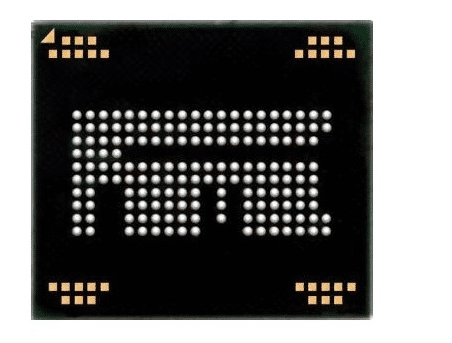

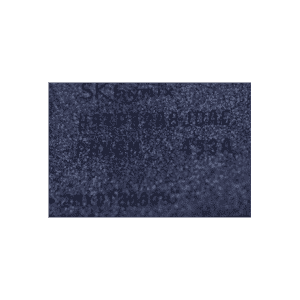

آی سی هارد HQTP32A8JDBC مناسب گوشی ال جی، اچ تی سی و هواوی

مدل‌های مورد استفاده در آی سی هارد:

HiPower mode is OFF

Frequence: 14 Mhz

CMD Pullup Level: 0 mV

CMD Active Level: 0 mV

Can’t init device. Reason: CMD Timeout Error

HiPower mode is OFF

Frequence: 14 Mhz

CMD Pullup Level: 3227 mV

CMD Active Level: 3300 mV

EMMC Device Information :

EMMC CID: 90014A4834473164040501A1C2895124

EMMC CSD: D02701320F5903FFFFFFFFEF8A4040D2

EMMC Manufacture Name: SKHYNIX

EMMC Manufacture ID: 0x90 , OEM ID: 014A

EMMC Manufacture Date: 5/2014 , Rev: 05

EMMC NAME: H4G1d , S/N: 01A1C289 , rev. 05

EMMC NAME (HEX): 483447316404

EMMC ROM 1 (Main User Data) Capacity: 3728 MB (0000E9000000)

EMMC ROM 2/3 (Boot Partition 1/2) Capacity: 4096 KB (000000400000)

EMMC RPMB (Replay Protected Memory Block) Capacity: 4096 KB (000000400000)

EMMC Permanent Write Protection: No

EMMC Temporary Write Protection: No

Extended CSD Information :

Extended CSD rev: 1.6 (MMC 4.5, MMC 4.51)

Boot configuration [PARTITION_CONFIG]: 0x00 , Boot from: no boot

Boot Bus Config: 0x00 , width 1bit

H/W Reset Function [RST_N_FUNCTION]: 0x00, RST_n signal is temporarily disabled

Supported partition features [PARTITIONING_SUPPORT]: 0x07

Device supports partitioning features

Device can have enhanced technological features in partitions and user data area

Device can have extended partitions attribute

Partition Settings [PARTITION_SETTING_COMPLETED]: 0x00

Backup saved: H4G1d_01A1C289_20180113_162224.extcsd
