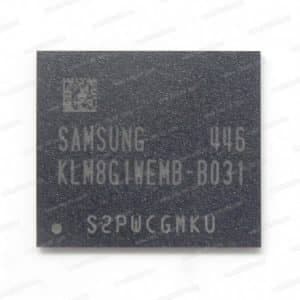

آی سی هارد KLM8G1WEMB-B031 مناسب گوشی سامسونگ

آی سی هارد KLM8G1WEMB-B031 - کیفیت اورجینال و ظرفیت 8GB مناسب گوشی های سامسونگ مدل G7102، T211 و T231 می‌باشد.

HiPower mode is OFF

Frequence: 14 Mhz

CMD Pullup Level: 3207 mV

CMD Active Level: 3279 mV

EMMC Device Information :

eMMC CID : 15010038574D423352060CB398BEC1B6

eMMC CSD : D02701320F5903FFF6DBFFEF8E40400C

eMMC Manufacturer ID: 0015 , OEM ID: 0100

eMMC Date: 12/2014 Rev.0x6

eMMC NAME: 8WMB3R , S/N: 213096638

eMMC NAME (HEX): 38574D423352

EMMC Manufacture Name: SAMSUNG

EMMC Manufacture ID: 0x15 , OEM ID: 0100

EMMC Manufacture Date: 6/2014 , Rev: 01

EMMC NAME: 8WMB3R , S/N: BA81BCD4 , rev. 01

EMMC NAME (HEX): 38574D423352

EMMC ROM 1 (Main User Data) Capacity: 7456 MB (0001D2000000)

EMMC ROM 2/3 (Boot Partition 1/2) Capacity: 4096 KB (000000400000)

EMMC RPMB (Replay Protected Memory Block) Capacity: 512 KB (000000080000)

EMMC Permanent Write Protection: No

EMMC Temporary Write Protection: No

Extended CSD Information :

Extended CSD rev: 1.7 (MMC 5.0, MMC 5.01)

Boot configuration [PARTITION_CONFIG]: 0x38 , Boot from: ROM1 (Main User Area)

Boot Bus Config: 0x01 , width 4bit

H/W Reset Function [RST_N_FUNCTION]: 0x01, RST_n signal is permanently enabled

Supported partition features [PARTITIONING_SUPPORT]: 0x07

Device supports partitioning features

Device can have enhanced technological features in partitions and user data area

Device can have extended partitions attribute

Partition Settings [PARTITION_SETTING_COMPLETED]: 0x00

Backup saved: 8WMB3R_BA81BCD4_20180113_165308.extcsd
