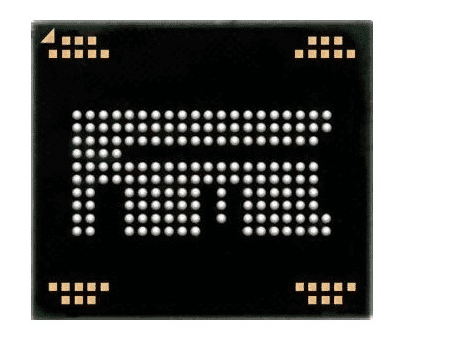

آی سی هارد KMN5U000ZM-B203 مناسب گوشی های سامسونگ

مدل‌های مورد استفاده از آی سی هارد سامسونگ :

توضیحات فنی آی سی هارد سامسونگ :

HiPower mode is OFF

Frequence: 14 Mhz

CMD Pullup Level: 51 mV

CMD Active Level: 92 mV

Can't init device. Reason: CMD Timeout Error

HiPower mode is OFF

Frequence: 14 Mhz

CMD Pullup Level: 3227 mV

CMD Active Level: 3289 mV

EMMC Device Information :

EMMC CID: 1501004E355530304D0833067471A01C

EMMC CSD: D02701320F5903FFF6DBFFE18E404028

EMMC CID: 1501004E355530304D02A1656613A061

EMMC CSD: D02701320F5903FFF6DBFFE18E404029

EMMC Manufacture : SAMSUNG , EMMC NAME: N5U00M , HEX: 4E355530304D , S/N: A1656613 , rev. 0x02

EMMC Manufacture ID: 0x15 , OEM ID: 0x00 , Device Type: BGA (Discrete embedded) , Date: 10/2013

EMMC Manufacture Name: SAMSUNG

EMMC Manufacture ID: 0x15 , OEM ID: 0100

EMMC Manufacture Date: 10/2013 , Rev: 08

EMMC NAME: N5U00M , S/N: 33067471 , rev. 08

EMMC NAME (HEX): 4E355530304D

EMMC ROM 1 (Main User Data) Capacity: 3728 MB (0000E9000000)

EMMC ROM 2/3 (Boot Partition 1/2) Capacity: 1024 KB (000000100000)

EMMC RPMB (Replay Protected Memory Block) Capacity: 128 KB (000000020000)

EMMC Permanent Write Protection: No

EMMC Temporary Write Protection: No

Extended CSD Information :

Extended CSD rev: 1.5 (MMC 4.41)

Boot configuration [PARTITION_CONFIG]: 0x00 , Boot from: no boot

Boot Bus Config: 0x00 , width 1bit

H/W Reset Function [RST_N_FUNCTION]: 0x00, RST_n signal is temporarily disabled

Supported partition features [PARTITIONING_SUPPORT]: 0x03

Device supports partitioning features

Device can have enhanced technological features in partitions and user data area

Partition Settings [PARTITION_SETTING_COMPLETED]: 0x00

Backup saved: N5U00M_33067471_20180111_165706.extcsd
