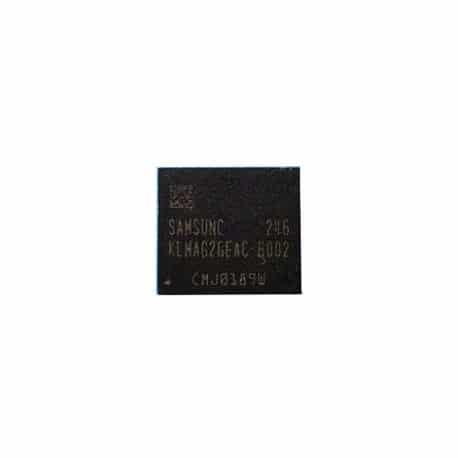

آی سی هارد KLMAG2GEAC-B002 مناسب هارد تبلت سامسونگ N5100

مشخصات آی سی هارد KLMAG2GEAC-B002 :

سایر توضیحات آی سی هارد KLMAG2GEAC-B002 :

مدل‌های مورد استفاده آی سی هارد سامسونگ :

• هارد تبلت سامسونگ N5100

HiPower mode is OFF

Frequence: 14 Mhz

CMD Pullup Level: 3227 mV

CMD Active Level: 3300 mV

EMMC Device Information :

EMMC CID: 1501004D414732474300EFE15A973164

EMMC CSD: D02701320F5903FFF6DBFFEF8E40400C

EMMC Manufacture Name: SAMSUNG

EMMC Manufacture ID: 0x15 , OEM ID: 0100

EMMC Manufacture Date: 3/2014 , Rev: 00

EMMC NAME: MAG2GC , S/N: EFE15A97 , rev. 00

EMMC NAME (HEX): 4D4147324743

EMMC CID : 1501004D414732474300A722BE1B62C0

EMMC CSD : D02701320F5903FFF6DBFFEF8E40400C

EMMC Manufacturer ID: 0015 , OEM ID: 0100

EMMC Date: 06/2015 Rev.0x0

EMMC NAME: MAG2GC , S/N: 2804071963

EMMC NAME (HEX): 4D414732474300

EMMC ROM1 (Main User Data) Capacity: 15028 MB

EMMC ROM2 (Boot Partition 1) Capacity: 4096 kB

EMMC ROM3 (Boot Partition 2) Capacity: 4096 kB

EMMC RPMB (Replay Protected Memory Block) Capacity: 512 kB

EMMC ROM 1 (Main User Data) Capacity: 15028 MB (0003AB400000)

EMMC ROM 2/3 (Boot Partition 1/2) Capacity: 4096 KB (000000400000)

EMMC RPMB (Replay Protected Memory Block) Capacity: 4096 KB (000000400000)

EMMC Permanent Write Protection: No

EMMC Temporary Write Protection: No

Extended CSD Information :

Extended CSD rev: 1.7 (MMC 5.0, MMC 5.01)

Boot configuration [PARTITION_CONFIG]: 0x08 , Boot from: ROM2 (Boot partition 1)

Boot Bus Config: 0x02 , width 8bit

H/W Reset Function [RST_N_FUNCTION]: 0x01, RST_n signal is permanently enabled

Supported partition features [PARTITIONING_SUPPORT]: 0x07

Device supports partitioning features

Device can have enhanced technological features in partitions and user data area

Device can have extended partitions attribute

Partition Settings [PARTITION_SETTING_COMPLETED]: 0x00

Backup saved: MAG2GC_EFE15A97_20180111_164345.extcsd
