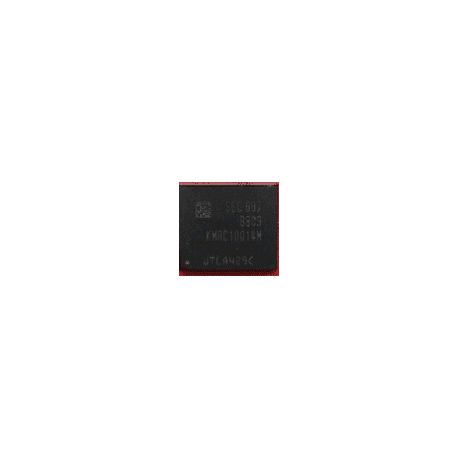

آی سی هارد KMRC10014M-B809 64GB

آی سی هارد KMRC10014M-B809:

شما میتوانید درصورت تمایل وضعیت و نوع هارد را انتخاب نمائید
لطفا در صورت انتخاب گزینه “پروگرام کردن” در صفحه ی خرید مدل عددی دستگاه را وارد نمائید.

HiPower mode is OFF
Frequence: 14 Mhz
CMD Pullup Level: 3217 mV
CMD Active Level: 3300 mV
EMMC Device Information :
EMMC CID: 150100524836344D42020229A844B34E
EMMC CSD: D02701320F5903FFF6DBFFEF8E40400C
EMMC Manufacture Name: SAMSUNG
EMMC Manufacture ID: 0x15 , OEM ID: 0100
EMMC Manufacture Date: 11/2016 , Rev: 02
EMMC NAME: RH64MB , S/N: 0229A844 , rev. 02
EMMC NAME (HEX): 524836344D42
EMMC ROM 1 (Main User Data) Capacity: 59640 MB (000E8F800000)
EMMC ROM 2/3 (Boot Partition 1/2) Capacity: 4096 KB (000000400000)
EMMC RPMB (Replay Protected Memory Block) Capacity: 4096 KB (000000400000)
EMMC Permanent Write Protection: No
EMMC Temporary Write Protection: No
Extended CSD Information :
Extended CSD rev: 1.8 (MMC 5.1)
Boot configuration [PARTITION_CONFIG]: 0x38 , Boot from: ROM1 (Main User Area)
Boot Bus Config: 0x00 , width 1bit
H/W Reset Function [RST_N_FUNCTION]: 0x01, RST_n signal is permanently enabled
Supported partition features [PARTITIONING_SUPPORT]: 0x07
Device supports partitioning features
Device can have enhanced technological features in partitions and user data area
Device can have extended partitions attribute
Partition Settings [PARTITION_SETTING_COMPLETED]: 0x00
Backup saved: RH64MB_0229A844_20180110_151051.extcsd
